Coordinate Scale & Protractor (GTA 5-2-12)

PROTRACTOR,RECTANGULAR

6675-00-266-6880NSN unverified

The GTA 5-2-12 clear plastic coordinate scale and protractor used for plotting MGRS/UTM grid coordinates and measuring azimuths on military maps. It carries scales for 1:25,000, 1:50,000, and other common map scales, with the protractor rose marked in both degrees and mils.

FSC: 6675 — Drafting, Surveying, and Mapping Instruments

Know before you order

GTA 5-2-12 is a graphic training aid designation; commercial equivalents (e.g., MapTools, RM Products) are sold under the same NSN/style.
Official FLIS nomenclature is PROTRACTOR,RECTANGULAR.

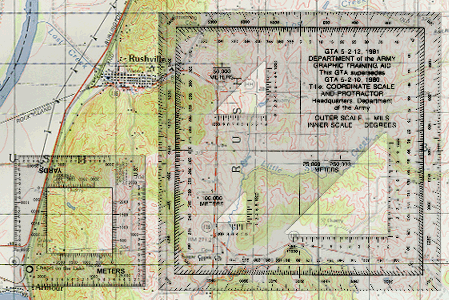

A transparent GTA 5-2-12 coordinate scale and protractor laid over a topographic map, showing its grid coordinate scales used to plot a six-digit grid. — Public domain — U.S. federal government work (U.S. Army) · U.S. Army Central Army Registry (1981), uploaded to Wikimedia Commons by Appsoft4 · sourcePhoto unverified

Where this NSN was confirmed

Similar items

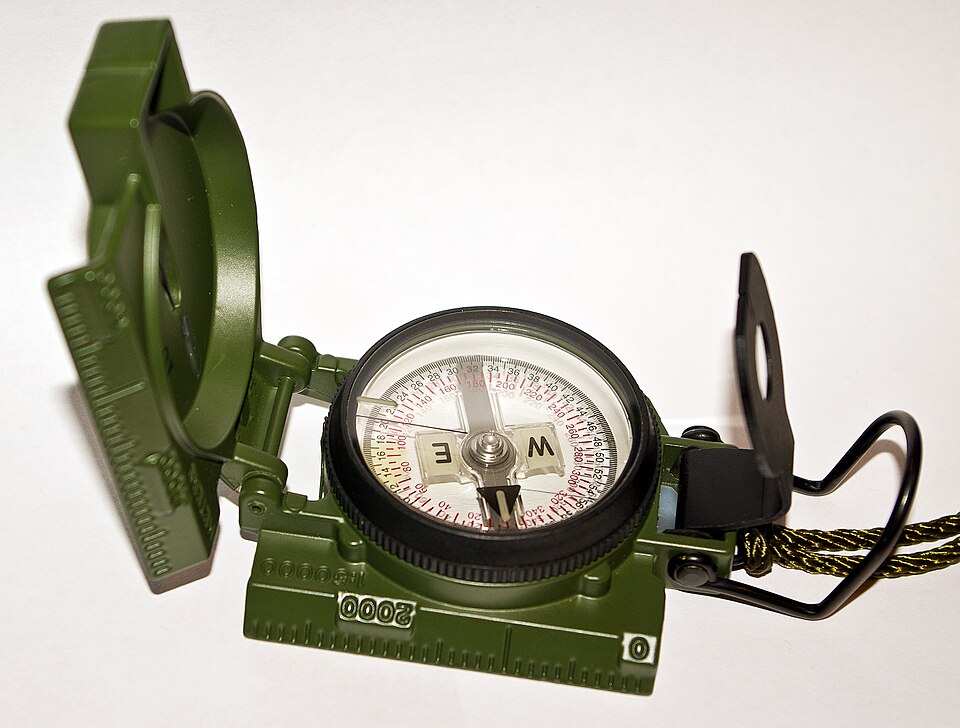

Lensatic Compass

6605-01-196-6971

NSNs change: items get superseded, replaced, and re-catalogued. Confirm any NSN in FED LOG or your supply system before ordering. Entries marked Unverified have passed this site's research checks but have not yet been personally reviewed by the site's maintainer.
